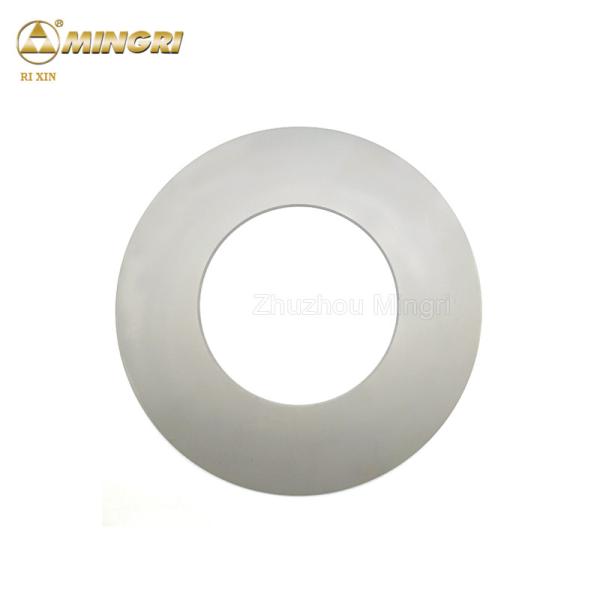

High Quality Zhuzhou Factory Tungsten Carbide Shear Blade Blanks for Silicon Wafer Metal Cutting
Advantage of carbide cutting blade
We proudly introduce the high-precision tungsten carbide shear blade designed for the metal sheet cutting, specifically tailored for cutting silicon wafer metals. Manufactured and customized by Zhuzhou Rixin Tungsten carbide, these blades are produced using advanced processing techniques to meet the high demands of precision cutting.
Key Features:
Versatile Cutting Tool: ideal for longitudinal shearing of metal coils, sheets, plastic films, PVC, paper, and other materials.
Superior Performance: Tungsten carbide shear blades exhibit exceptional precision, hardness, and wear resistance, making them particularly suitable for the precision cutting of silicon-based metal sheets.
Custom Specifications:
Dimensional Specifications: 310mm*170mm*10mm
Blanks and Grinding we can produce
Surface Finish Requirement: Ra0.04
Parallelism Requirement: 0.005
Production description of carbide circular slitting blade
| Grade |
Grain size |
Density |
T.R.S |
Hardness |
Suitable for cutting |
| g/cm3 |
≥ N/mm2 |
HRA |
| MG30N |
middle grain |
13.95-14.1 |
3000 |
87.5 |
apply to regular sealing ring, die, wear part, mining tools and machining of non-ferrous cutting blades, rolling shear blade, weld assembly, suitable for cutting paper, nonferrous metals. |
| MG40N |
middle grain |
13.65-13.8 |
2800 |
86.3 |
apply to regular sealing ring, die, wear part, mining tools and machining of non-ferrous cutting blades, rolling shear blades ect. |
| No |
OD*ID*T(mm) |
No |
OD*ID*T(mm) |
| 1 |
150.1*125*10 |
13 |
250*125*10.1 |
| 2 |
160*55*10.1 |
14 |
250*125*15.1 |
| 3 |
162.1*95*22.375 |
15 |
250.1*125*5 |
| 4 |
181*109*10.1 |
16 |
250.1*160*7 |
| 5 |
185.06*90*10 |
17 |
250.3*160*15 |
| 6 |
185.15*175*30 |
18 |
253*159*14.1 |
| 7 |
194*145.4*22.22 |
19 |
255*160*10 |
| 8 |
201*135*10 |
20 |
260*160*10 |
| 9 |
204*126*5.08 |
21 |
280.15*175*30 |
| 10 |
220*130*4.5 |
22 |
300.15*150*5 |
| 11 |
249.6*160*8 |
23 |
315*280*20 |
| 12 |
250*160*10 |
24 |
340*225*20 |
Appllication of carbide cutting blade
Widely use for silicon steel sheet cutting, thickness 0.5-0.7mm
Production and test of carbide cutting blade
First step ----- Soon after the order is confirmed, carbide circular slitting blade products will start to prepare the RTP powder
Second step ---- Before mass production, we need to do a trial pressing and sintering using every mould, and we check the appearances and the sizes of carbide circular slitting blade samples .
Third step ----- Bulk production ,press the raw materials to shape blanks
Fourth step ------ Then sinter blanks to finish (HIP) and finished carbide circular slitting blade products inspection ensure the best quality and production capacity.
Zhuzhou Rixin Tungsten carbide, with its advanced technology and professional processing capabilities, is committed to providing customers with high-quality, high-performance custom metal cutting tools. Our tungsten carbide shear blades ensure outstanding cutting results, providing reliable support for your production line.
Packing and delivery of carbide cutting blade
Because of the high density but small size, tungsten Carbide Processing products are carefully packaged to minimize the risk of damage during transit. Cemented carbide products are packaged in sturdy boxes and sealed to ensure that they reach their destination safely. Packaging materials used include bubble wrap, foam, bubble bags, cardboard, and other appropriate materials provided as necessary.
We use only the highest quality packaging materials to ensure the safe arrival of your products.
We ship our products using reliable and efficient courier services, especially by air.
We mainly offer express shipping for urgent orders like DHL, FedEx, UPS, etc.
company information
Rixin is technically reliable with over 20+ years of manufacturing experience in all types of industrial knives and blades. When you use Rixin knives and blades, you save money and worries about replacing them.
We are located in one of the largest production bases of Tungsten carbide products, we have a strong ability to access almost all quality steel and other materials available in the industry. Rixin manufactures all your knives and machines from the best quality steels procured from ISO 9001 certified mills and suppliers.
If you are looking for machine knives with extra longevity, less machine downtime, and fast turnaround time, Rixin is ready to help, we are super easy to work with!
